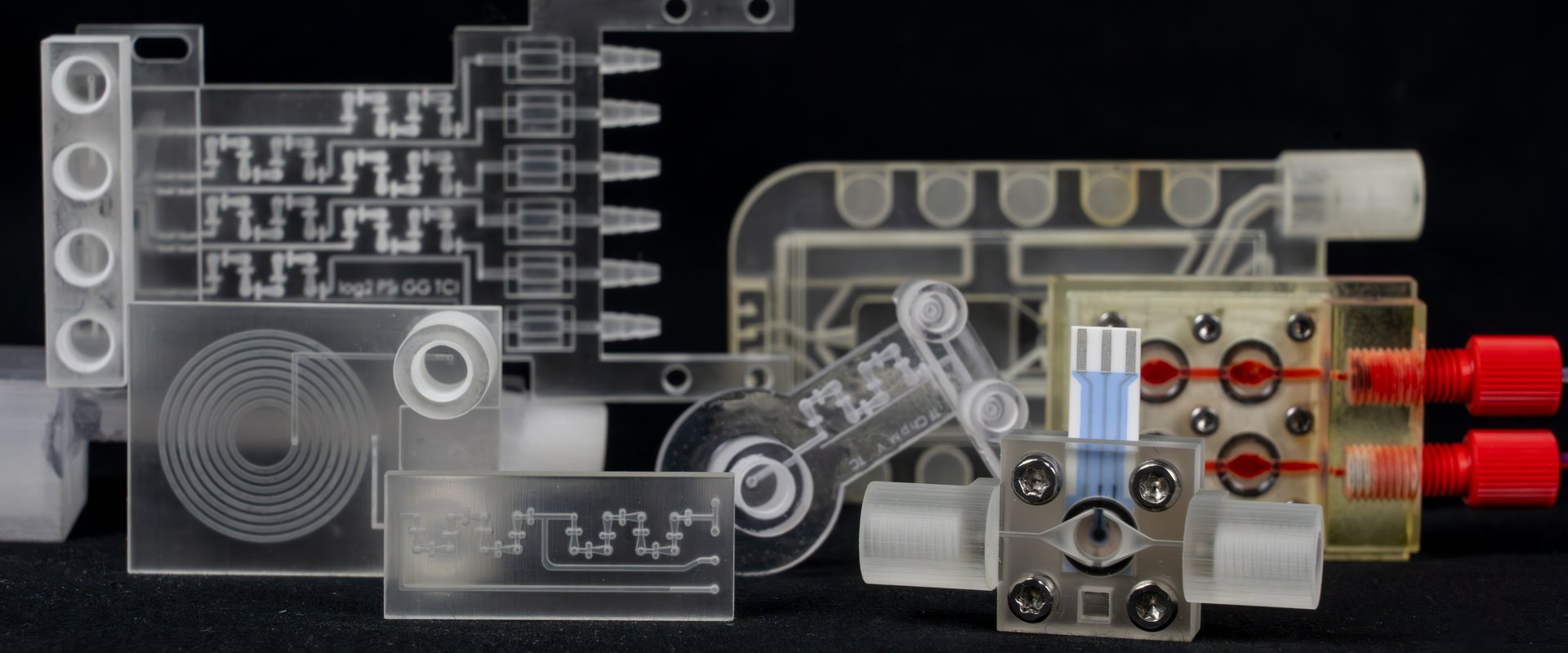

At the Department of Technical Biology, Augsburg University we use high-resolution 3D printing techniques to develop customized microfluidic systems for your application.

• Scale: With feature sizes down to 100 µm in Z and 300 µm in X and Y direction tiny channel networks can be created in all three dimensions.
• Complex shapes: Overhangs, hollow structures or even a small sphere inside a microchannel? Everything possible!
• Materials: The rigid polyacrylate material our chips are typically fabricated from may be disinfected using ethanol or even sterilized by heat steam sterilization. Furthermore, the materials show biocompatibility in respect to USP class IV and ISO-10993.
• Speed: On-demand fabrication of the microfluidic systems within a few hours enables iterative prototyping and minimize development times.

Please contact us at: protofluidics@physik.uni-augsburg.de

Thank you for your interest in our services in the field of microfluidic systems at the Department of Technical Biology, Augsburg University.

We offer a wide range of services, ranging from the development of customized microfluidic systems to the adaptation of existing systems for your specific applications. Our high-resolution 3D printing techniques enable us to develop precise and individual solutions tailored to your requirements.

The recommended methods are always tailored to your specific goals and needs. This forms the basis for a solution-oriented, predictable, and efficient process of proposal creation and order processing.

Furthermore, we work closely with the Institute of Physics (IfP) and the Institute of Materials Resource Management (MRM) to provide you with a comprehensive and interdisciplinary service offering.

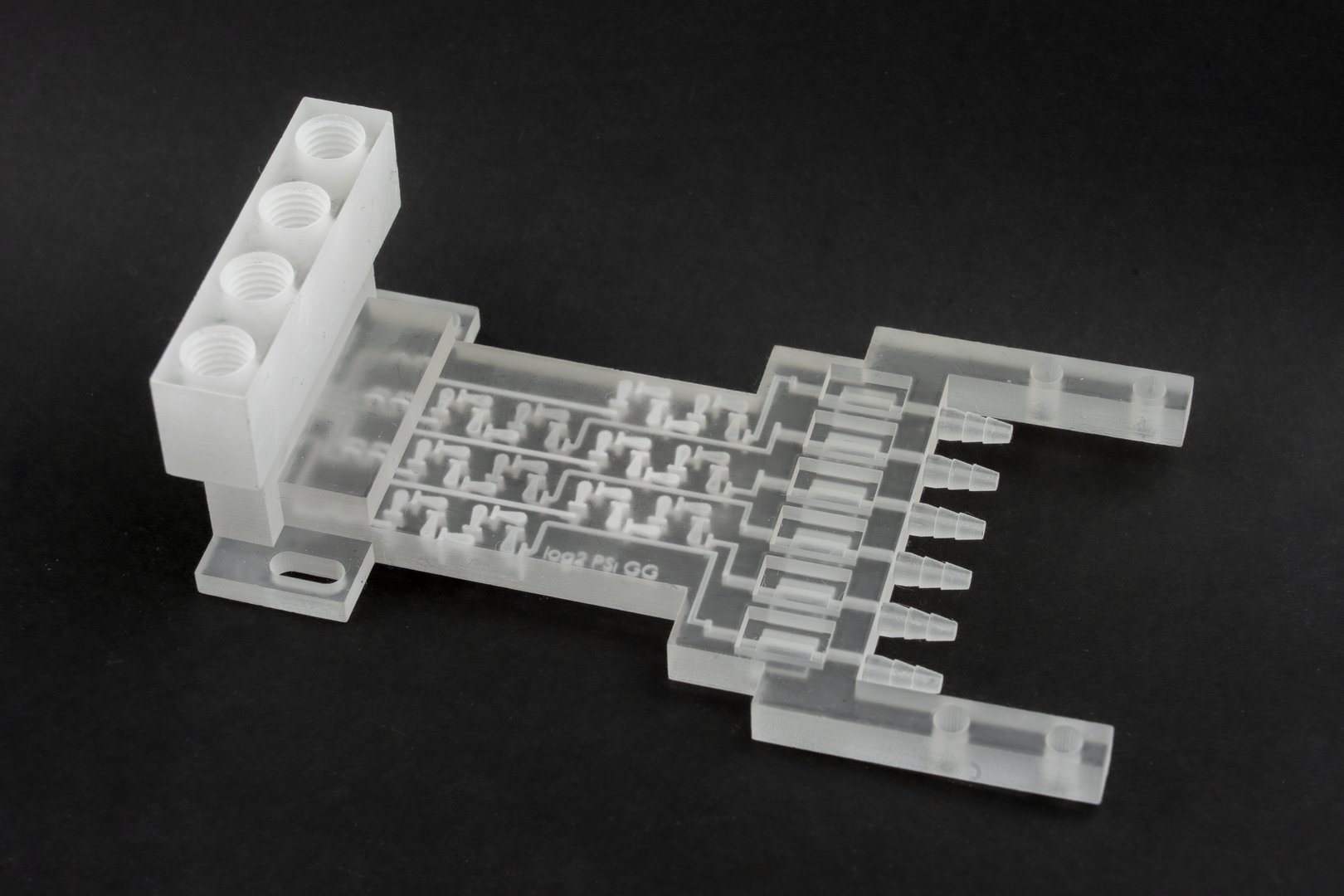

• A Enders, I Siller, K Urmann, MR Hoffmann, J Bahnemann
  3D printed Microfluidic Mixers – a Comparative Study on Mixing Unit Performances;
  Small 15 (2), 1804326 (2019); https://doi.org/10.1002/smll.201804326

• C Heuer, JA Preuss, M Buttkewitz, T Scheper, E Segal, J Bahnemann
  A 3D-Printed Microfluidic Gradient Generator with Integrated Photonic Silicon Sensors for Rapid Antimicrobial Susceptibility Testing;
  Lab on a Chip 22 (24), 4950-4961 (2022); https://doi.org/10.1039/D2LC00640E

• IG Siller, JP Preuß, K Urmann, MR Hoffmann, T Scheper, J Bahnemann
  3D-Printed Flow Cells for Aptamer-Based Impedimetric Detection of E. coli Crooks Strain;
  Sensors 20 (16), 4421 (2020); https://doi.org/10.3390/s20164421

• A Enders, JA Preuß, J Bahnemann
  3D printed microfluidic spiral separation device for continuous, pulsation-free and controllable CHO cell retention;
  Micromachines 12 (9) (2021); https://doi.org/10.3390/mi12091060

• C Kortmann, T Habib, C Heuer, D Solle, J Bahnemann
  A Novel 3D-Printed and Miniaturized Periodic Counter Current Chromatography System for Continuous Purification of Monoclonal Antibodies;
  Micromachines 15(3), 382 (2024); https://doi.org/10.3390/mi15030382

• KV Meyer, S Winkler, P Lienig, G Dräger, J Bahnemann
  3D-Printed Microfluidic Perfusion System for Parallel Monitoring of Hydrogel-Embedded Cell Cultures;
  Cells 12(14), 1816 (2023); https://doi.org/10.3390/cells12141816

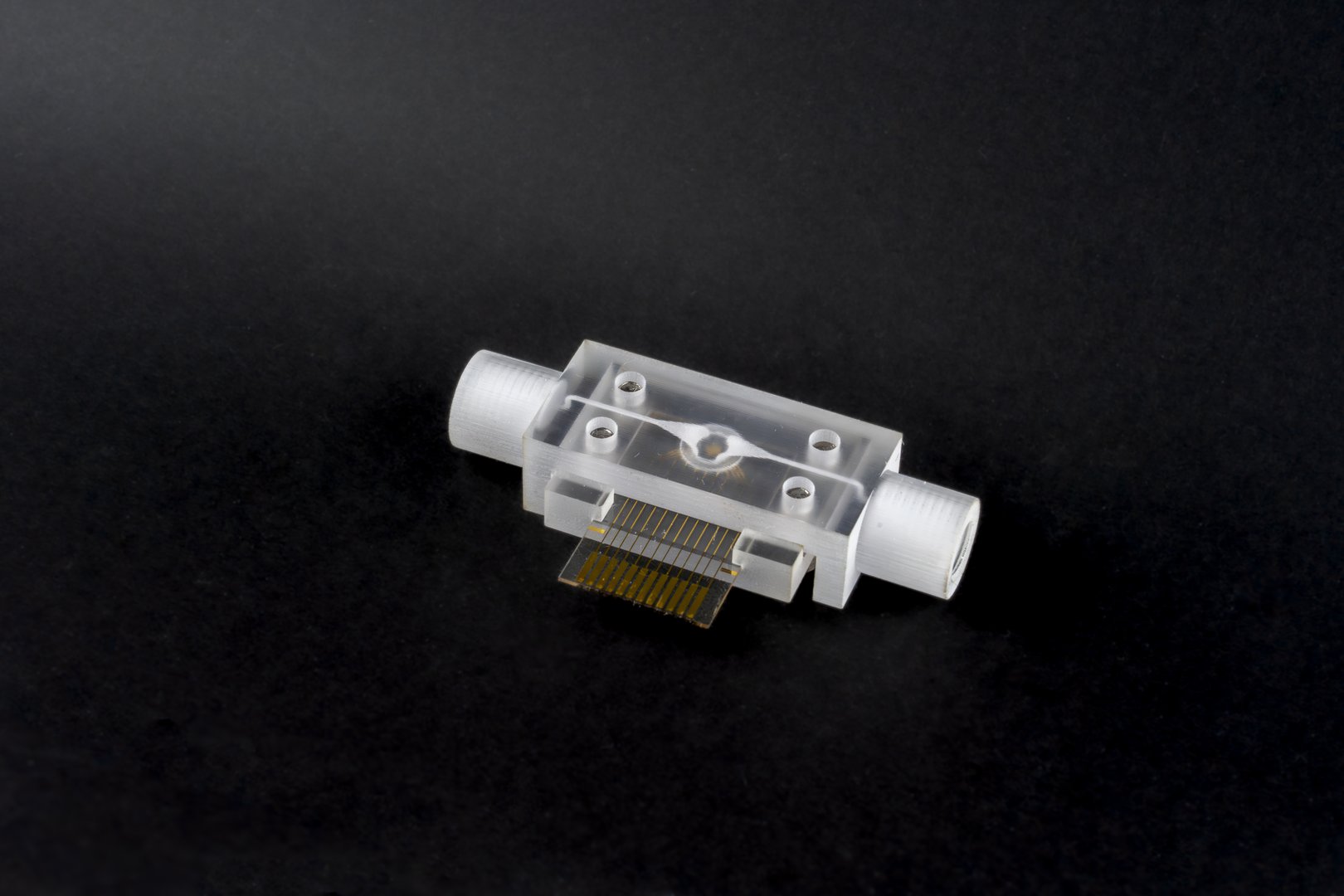

• MA Buttkewitz, C Heuer, J Bahnemann
  Sensor integration into microfluidic systems: trends and challenges;
  Current Opinion in Biotechnology, Volume 83, 102978 (2023); https://doi.org/10.1016/j.copbio.2023.102978

• A Enders, A Grünberger, J Bahnemann
  Towards Small Scale: Overview and Applications of Microfluidics in Biotechnology;
  Mol Biotechnol, Volume 66, 365–377 (2022); https://doi.org/10.1007/s12033-022-00626-6

• S Winkler, KV Meyer, C Heuer, C Kortmann, M Dehne, J Bahnemann
  In vitro biocompatibility evaluation of a heat‐resistant 3D printing material for use in customized cell culture devices;
  Engineering in Life Sciences 22 (11), 699-708 (2022); https://doi.org/10.1002/elsc.202100104

• H Heuer, JA Preuß, T Habib, A Enders, J Bahnemann
  3D printing in biotechnology—An insight into miniaturized and microfluidic systems for applications from cell culture to bioanalytics;
  Engineering in Life Sciences 22 (12), 744-759 (2022); https://doi.org/10.1002/elsc.202100081

• IG Siller, A Enders, P Gellermann, S Winkler, A Lavrientieva, T Scheper, J Bahnemann
  Characterization of a customized 3D-printed cell culture system using clear, translucent acrylate that enables optical online monitoring;
  Biomed. Mater. 15 055007 (2020); https://doi.org/10.1088/1748-605X/ab8e97
